Whirlpool® 7.4 cu. ft. Smart Front Load Electric Dryer YWED9620HW
Whirlpool, Maytag Boxing Day Laundry Sale, December 5 - January 8, 2025. Save $150 when you purchase 2 qualifying Whirlpool® and/or Maytag® laundry appliances.
Smart ApplianceCare for your family from your smartphone or tablet.
Steam Refresh CycleRelease wrinkles and reduce odors with the Steam Refresh cycle. It uses water and heat to get clothes ready to wear without rewashing.
Wrinkle Shield™ Plus Option with SteamHelp keep wrinkles from setting into clean, dry fabrics. The Wrinkle Shield™ Plus option with Steam uses tumbling and steam for up to 150 minutes after the cycle ends or until you open the dryer door for improved wrinkle-fighting performance.
7.4 cu. ft. CapacityGet plenty of room to dry the large loads you washed in the matching front load washer. This 7.4 cu. ft. dryer easily handles bulky items like comforters and sleeping bags.
Intuitive ControlsLet the dryer guide you to the right cycle combinations or customize up to 36 of your own to get the right type of fabric care for whatever you're drying.
Advanced Moisture SensingHelp prevent overdrying. Three sensors track moisture and temperature, adapting drying times to end the cycle at just the right time.
Controls
Control TypeElectronic Touch
End Of Cycle SignalYes
Control LocationFront Console
Feedback Status IndicatorsSensing; Cool Down; Wet; Damp; Check Vent
Electrical
Hz60
Volts240
Amps30
Configuration and Overview
Fuel TypeElectric
Cycles and Options
Cycle Time RemainingYes
Modifiers
Number Of Dryness Levels3
Selection Of Drying LevelsLess; More; Normal
Temperature Settings
Number Of Temperatures5
Temperature SelectionAir Only; Extra Low; High; Low; Medium
Installation Considerations
Long VentNo
Maximum Vent Length Ft64
Venting DirectionLeft, Right, Bottom, Rear
Specifications
Country Of OriginUSA
Top Load MatchingNo
Product To Product PairsWFW9620HW
Front Load MatchingYes
Extended Service Plan ParentEW06IW4Y, EW06IW1Y, EW06IW2Y
Optional AccessoriesW10044609A, WFP2715HW, W10869845, W10623830, W10323246, W10322470A
Features
Automatic Dry ControlYes
Moisture SensorYes

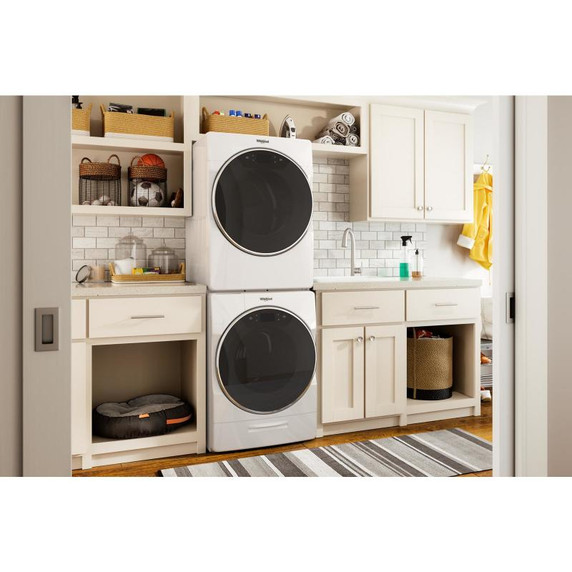

StackableYes
Lint Filter IndicatorNo
Certifications
ULYes
Energy Star QualifiedYes
Exterior
WindowYes
Door StyleSide Swing
Reversible DoorYes
Details
Hoses IncludedNo
Lint Screen LocationFront

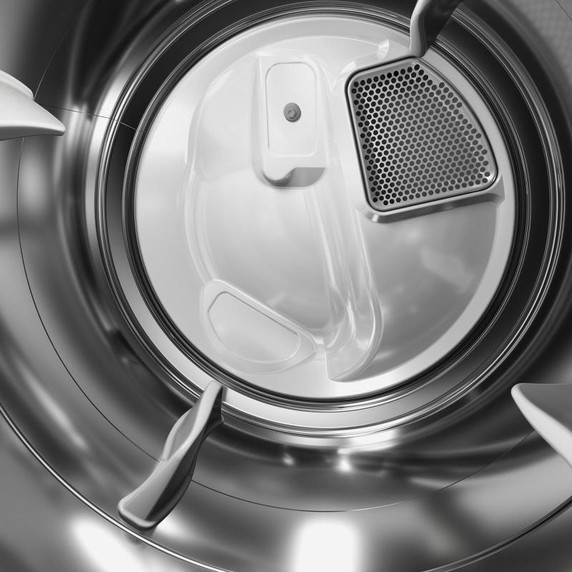

Drum MaterialStainless Steel
Quad BafflesYes
Drying RackYes (Optional)
Cycles
Number Of Dryer Cycles36
Drying Cycles SelectionsBulky Items; Colors; Delicates; Heavy Duty; Normal; Quick Dry; Regular; Sanitize; Steam Refresh; Timed Dry; Towels; Whites; Wrinkle Control
Options
Dryer Option SelectionsWrinkle Shield™
Carton Depth31.26"
Carton Height44.96"
Carton Width28.66"
Depth With Door Open 90 Degree54.5"
Depth31.0"
Gross Weight175.0 lbs.
Height38.75"
Width27.0"
Capacity IEC CAN (cubic feet)7.4000001
