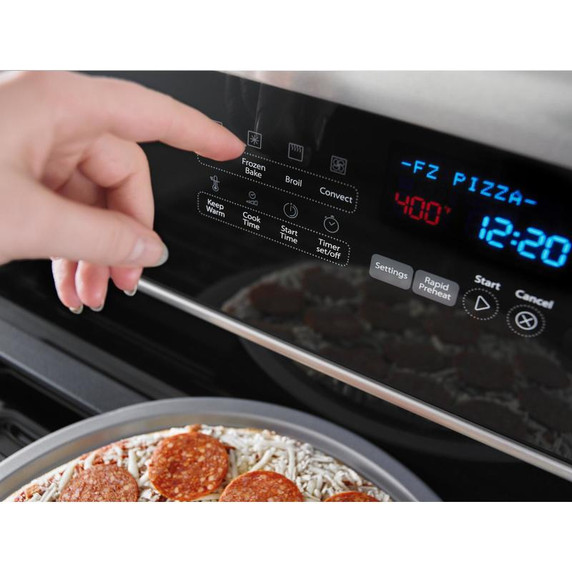

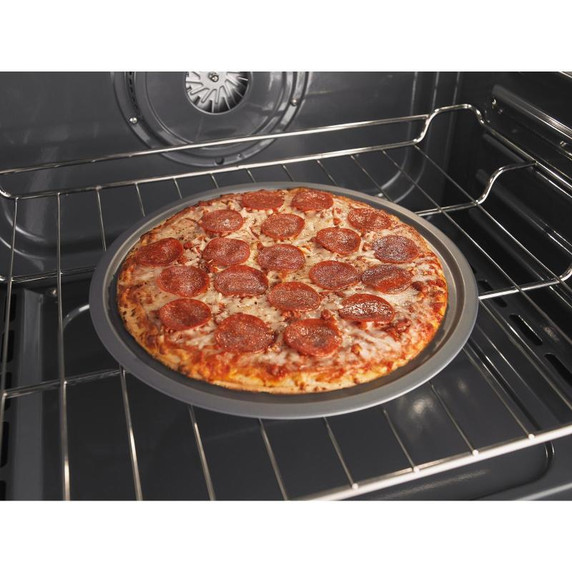

Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

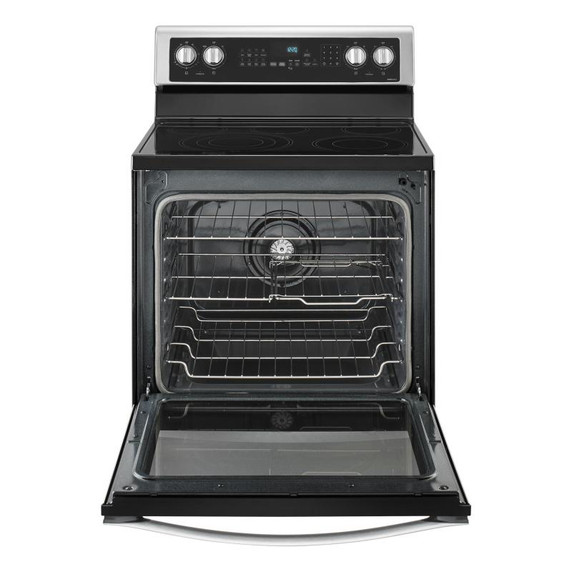

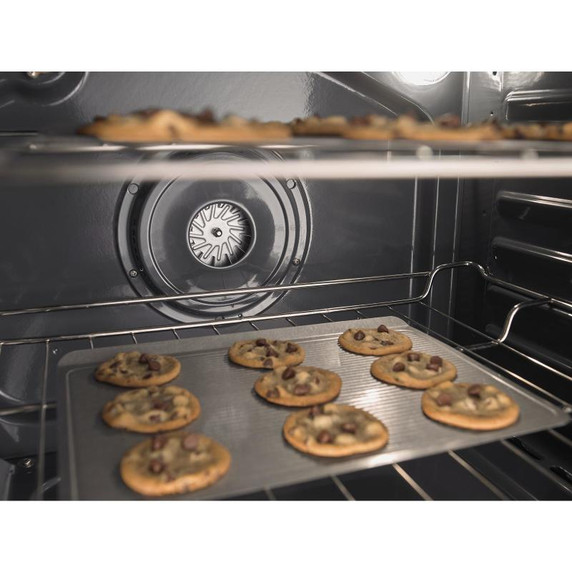

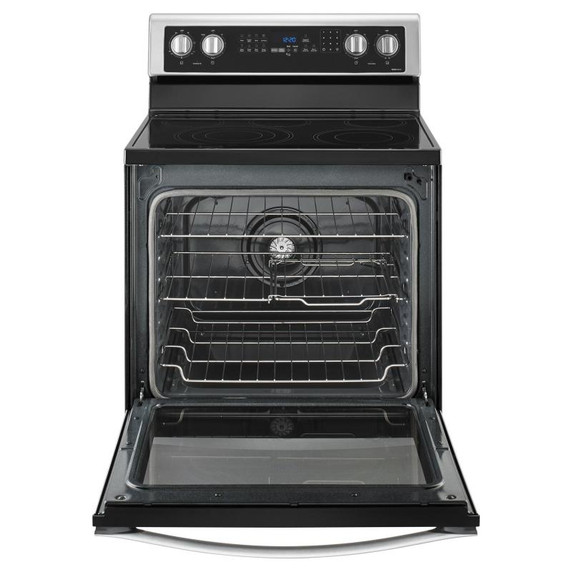

True Convection CookingTrue convection cooks food faster by using a rear fan and third heating element to circulate hot air over, under, and around food.

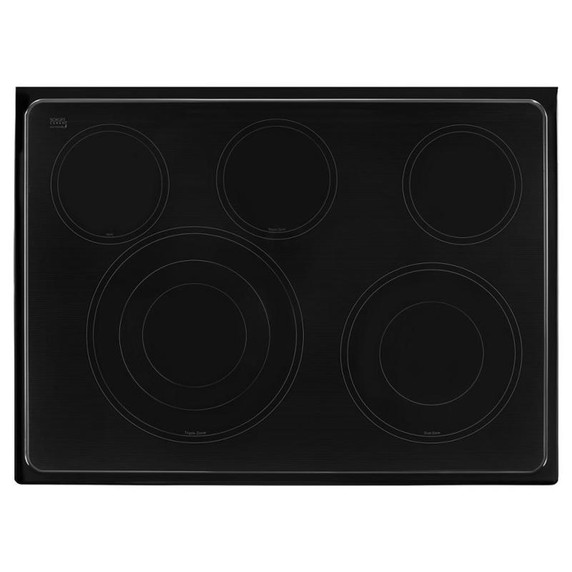

FlexHeat™ Triple Radiant ElementThe FlexHeat™ triple radiant element is like having three elements in one. A 6" inner ring is great for smaller pots and pans, while 9" and 12" outer rings make room to heat larger cookware.

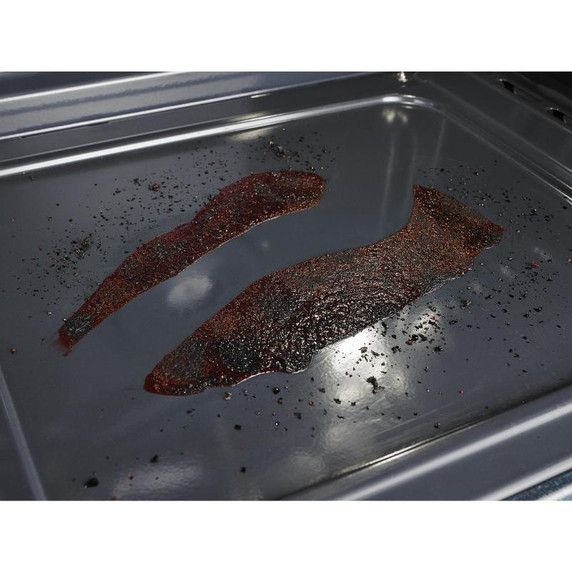

AquaLift® Self-Clean technologyEnjoy odor-free cleaning without harsh chemicals in only 50 minutes.* AquaLift® self-cleaning technology uses only water and low heat to help remove baked-on foods from the bottom of the oven.
*Based on average cleaning time of self-clean cycle with water and moderate soils.
Temperature SensorA built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
Rapid PreheatSave time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
*Single-rack baking with Rapid Preheat option versus three-rack without option.
6.4 cu ft capacitythis gas slide-in range provides a large cooking capacity that easily handles multiple dishes at once.
Hidden bake elementThe hidden bake element is sealed under the oven floor to protect it from spills and drips.

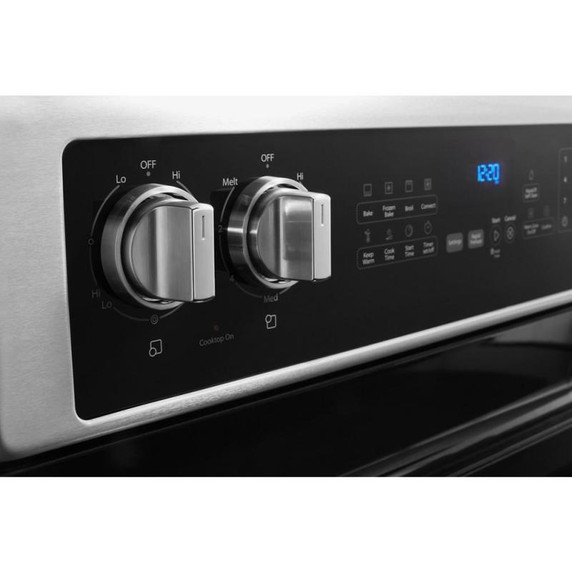

Knob TypeWeighted
Electronic Display TypeDigital
Knob ColorBlack Stainless
Volts120
Hz60
Power Cord IncludedYes
Amps40
Fuel TypeElectric
Annual Energy Usage Kwh590
Country Of OriginUSA
Dishwasher SafeNo
Optional AccessoriesW10355051B
Extended Service Plan ParentEW06IW2Y, EW06IW4Y, EW06IW1Y
Product To Product PairsUXT4130ADS, WVW53UC0LS, UXT5530AAS, WVW53UC0HV, WVU17UC0JW, UVL5430JSS, WVW57UC0FS, WVW73UC0LS, WVU37UC0FS, WVW51UC0LS, WVU17UC0JS, WVU57UC0FS, UXT5230BDS
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
LP ConvertibleNo
Natural Gas ConvertibleNo
Whr RangeBladed Knob; EZ-2-Lift™ Hinged Grates; FlexHeat™ Dual Element; FlexHeat™ Triple Radiant Element; Frozen Bake™ Technology; Sabbath Mode/Star-K Certification; Self-Cleaning; True Convection; Whirlpool Handle
ULYes
ADA CompliantNo
CULYes
Energy Rating Kwh Year590
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Size In30
Range TypeFreestanding
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Oven Light Switch LocationOven Control
Broiler Element Power3600W
Interior ColorGrey
Cooktop Surface MaterialGlass
Number Of Oven Lights1
Oven Light TypeIncandescent

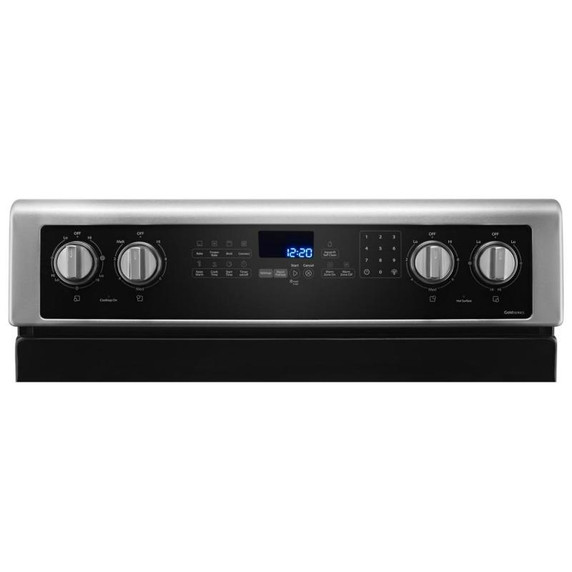

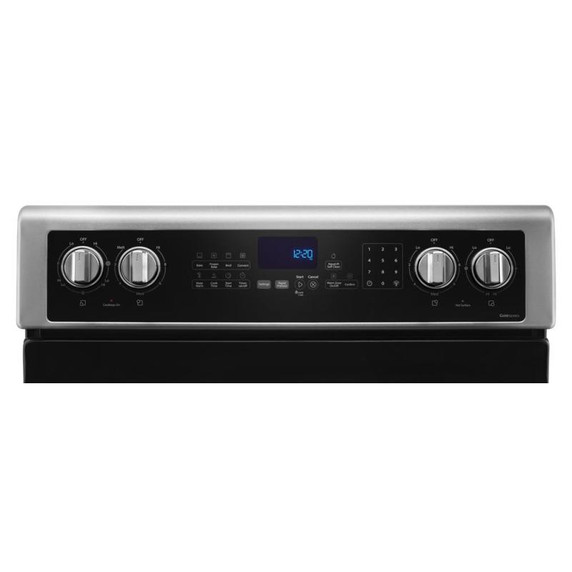

Oven Control TypeElectronic Touch
Number Of Oven Racks3
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Number Of Rack Guides7
Convection Element TypeTrue
Oven Interior Depth In Inches20.75
Oven Interior Width In Inches24.38
Oven Rack Type2 Standard and 1 Max Capacity
Bake Element Power3600W
Convection Element Power Watts925
Oven Cleaning TypeAquaLift® Self-Clean
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Rear Element Burner Size6in.
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Left Front Element Burner Size12in./9in./6in.
Right Front Element Burner TypeStandard Radiant
Cooktop Control LocationBackguard
Left Rear Element Burner TypeStandard Radiant
Right Rear Element Burner TypeStandard Radiant
Left Front Element Burner TypeStandard Radiant
Center Rear Element Burner TypeStandard Radiant
Left Rear Element Burner Power300W/1300W
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth With Door Open 90 Degree47.81"
Depth27.75"
Gross Weight187.0 lbs.
Height46.88"
Maximum Height47.88"
Minimum Height46.88"
Width29.88"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)6.4
