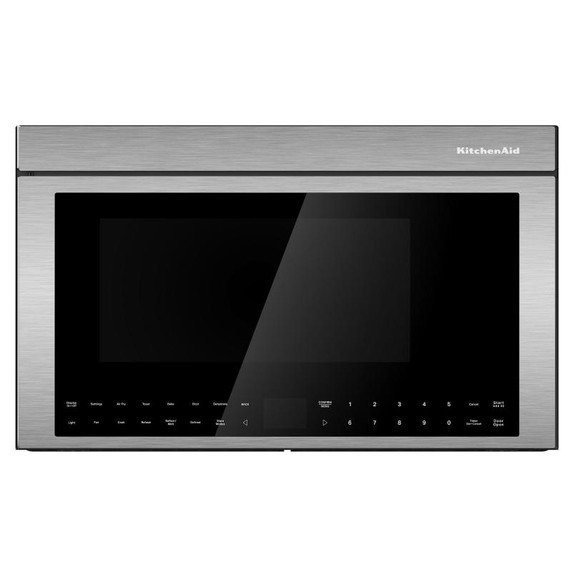

Kitchenaid® Multifunction Over-the-Range Microwave Oven with Flush Built-In Design YKMMF530PPS


KitchenAid Buy More, Save More, July 11 - August 28, 2024. Save $200 when you purchase 2 qualifying KitchenAid® freestanding appliances. Save $300 when you purchase 3 qualifying KitchenAid® freestanding appliances. Save $400 when you purchase 4 or more qualifying KitchenAid® freestanding appliances!

(You save $400.00 )
Earliest Delivery Date: July 28th, 2024*
Hurry! Only left
Colour: Stainless Steel
Control Type: Electronic Touch
Door Opening: Left Swing
This KitchenAid® Multifunction Over-the-Range Microwave Oven combines the versatility of an air fryer, toaster oven, convection oven, microwave and ventilation hood, all in one space-saving appliance designed for flush installation within a standard 12 ¾" cutout.
Top 3 Features

Air Fry ModeReplaces a countertop air fryer for all of the crisping with none of the clutter. Triple heating elements and a fan circulate hot air around the included air fry basket to crisp and brown food with less oil.

Multifunction Oven ModesReplace a convection or toaster oven, freeing up counter space by elevating your baking, roasting, broiling and toasting. Triple heating elements and a fan direct heat where it's needed to cook at temperatures up to 450°F.

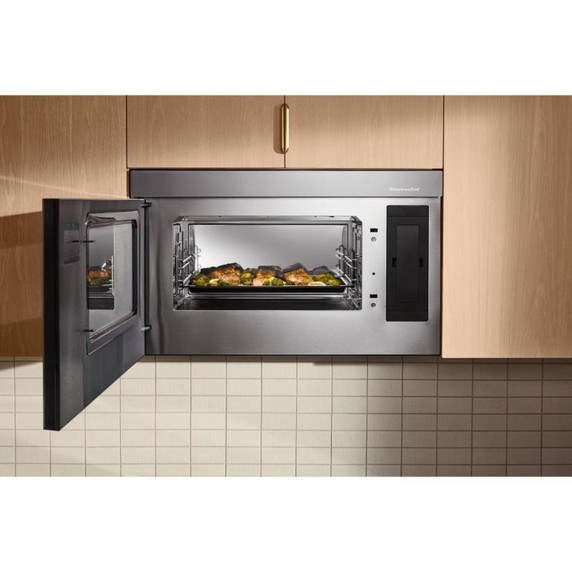

Flush Built-In DesignProvides a seamless built-in look within a standard 12 ¾” deep cutout. When closed, the microwave door fits evenly with surrounding cabinet fronts, so your kitchen stands out, not the appliance.

Additional Features

Turntable-Free DesignMaximizes cooking space for large dishes or multiple items at the same time. A hidden motor circulates microwave heating throughout the entire oven, eliminating the need for a traditional turntable.

Smart ApplianceGives you control over every stage of cooking. Remotely preheat, monitor and control the microwave oven with the KitchenAid™ App or with simple voice commands through your Google Assistant or an Alexa-enabled device, leaving your hands free to create.

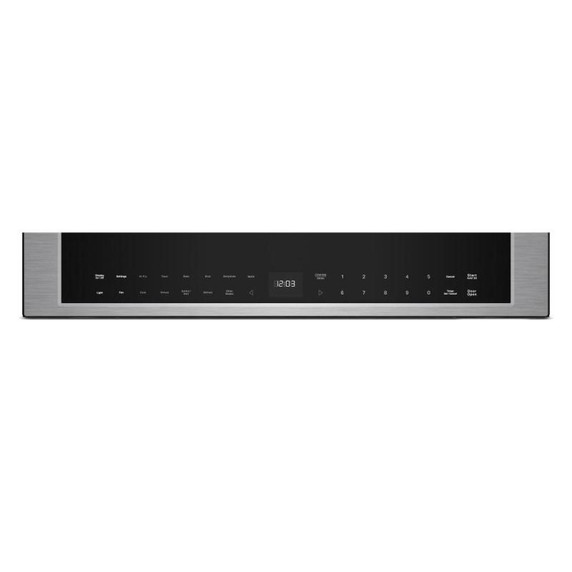

Backlit Touch ControlsIlluminate when in use and fade unobtrusively into the sleek black glass of the oven door when the oven is off. A full-color LCD display makes it easy to see and select cooking modes, temperatures and cook times.

Microwave Cooking ModesProvide convenient presets for popular cooking tasks, including cook, reheat, soften, melt and defrost. The microwave will automatically adjust cook time and power levels for different foods and beverages, taking the guesswork out of choosing settings.

Three-Speed 400 CFM Motor Class Ventilation SystemFeatures low, medium and high settings to help clear the air of smoke and steam, keeping up with all kinds of cooking adventures, from gentle simmering to high-heat searing.

Keep Warm ModeMaintains low heat for up to 60 minutes to keep cooked foods at serving temperature, allowing you to focus on other steps in your creative process or finish one dish while another rests.

Steam Clean ModeUses the power of steam to help loosen cooked-on food without the need for harsh cleaners. After running this cycle, just wipe down the inside of the microwave with a damp cloth.

PrintShield™ FinishResists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up the kitchen.

Two LED Lights with Night Light SettingProvide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.

Stainless Steel Covered Grease FiltersConceal aluminum mesh filters behind a sleek stainless steel panel for a fully finished look. Filters use multiple layers of screening to help capture the grease and odors of high-heat cooking and remove for easy cleaning with soap and water.

1.1 Cu. Ft. CapacityComfortably fits a variety of dishes with enough height for a mixing bowl and width for a 9" x 13" casserole dish or multiple items at the same time.

What's in the boxModel KMMF530P includes- Dishwasher-Safe Air Fry Basket- Toasting Pan- Oven Rack

Bake ModeUses dual heating elements to bake at temperatures up to 450°F, eliminating the need for a countertop convection or toaster oven. The included oven rack fits a 9" x 13" pan.

Air Bake ModeUses triple heating elements and a fan for convection baking at temperatures up to 450°F, eliminating the need for a countertop convection oven. The included oven rack fits a 9" x 13" pan.

Roast ModeUses dual heating elements and a fan to roast at temperatures up to 450°F, eliminating the need for a countertop convection oven. The included oven rack fits a 9" x 13" pan.

Broil ModeUses a grill element in the top of the oven to broil at temperatures up to 400°F, eliminating the need for a countertop toaster oven. The included oven rack fits a 9" x 13" pan.

Toast ModeWith included toasting pan combines direct heat from a toast element on the bottom of the oven and indirect heat from a grill element in the top to achieve your preferred level of browning, eliminating the need for a countertop toaster oven.

850-Watt Microwave Cooking PowerCooks quickly to boil water, defrost ingredients or warm completed dishes to enjoy again.


Microwave Details

Cooking Power Watts850

Work Surface LightYes



Convection Power Watts1,400

Grill Power Watts1,400

Interior LightLED

Cavity FinishStainless

Interior Depth11.0

Interior Height9.13

Interior Width18.13









ADA CompliantNo


Night LightYes


Convenience Cooking ControlsYes

Number Of Power Levels10

Sensor CookingYes

Fan Speed IndicatorYes

Ventilation System

VentingExterior or Recirculating

Duct Outlet Size In3.25 W x 10 H

Duct TypeRectangular

Blower TypeCentrifugal

Duct DirectionVertical or Horizontal

Vent Fan LocationBack

Ventilation TypeUpdraft

Cfm Motor Class400

FiltersCharcoal Recirculating Filter; Dishwasher Safe Grease Filter


Control TypeElectronic Touch

Display ColorColored

Control LocationBottom


Country Of OriginChina

Add 30 SecondsYes

Soften MeltYes




Keep WarmYes

Optional AccessoriesW11630300

Extended Service Plan Parent

Product To Product Pairs


Door OpeningLeft Swing

Door ReleaseTouch to Open

Handle ColorN/A


Microwave ConfigurationMicrowave Hood Combination


Works WithAmazon Alexa; Google Assistant

ConnectivityApp; Remote Access; Voice Controlled; WiFi


Microwave SelectionsAdd 30 Seconds; Air Fry; Auto Cook; Beverage; Convect; Cook; Cook Power; Cook Time; Crisp Pan; Defrost; Dinner Plate; End of Cycle Signal; Fresh Vegetable; Keep Warm; Languages - English/French; Off/Cancel; Pizza; Popcorn; Potato; Reheat; Soften/Melt; Soun


Depth With Door Open 90 Degree41.5"

Carton Depth16.7"

Carton Height21.1"

Carton Width32.9"


Gross Weight83.0 lbs.



Capacity FT3 (cubic feet)1.1
